Ecosure Super Complete System 1950 Litres

Description

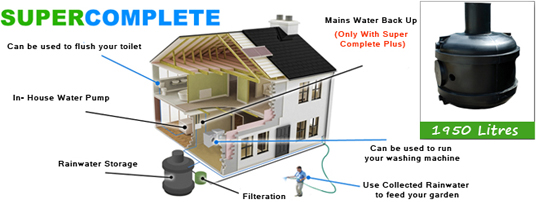

An automatic rainwater harvesting system which is used for collecting and suppling water on demand for both Domestic and Commercial use. Quality, UK made system for saving money on your water bills.

This system consists of an industrial strength MDPE (Medium Density Polyethylene) tank complete with pipework connections, self priming inline pump, water filter. This system offers great savings on mainwater consumpsion and help towards the environment.

Rainwater System includes
• Ecosure Rainwater Harvesting Tank
• 25m pipe
• Ecosure Filter Cylinder
• Extension Neck Ring
• Walk Over / Bolt Down Neck Ring Cover
• Complete Pipe Fittings Kit
• Complete Pump Fitting Kit


Why install a rainwater harvesting system?
If you're looking to create an eco friendly home or you're just looking to reduce your water bills then a rainwater havesting system is answer. You could dramatically reduce your mains water usage by install one of our systems. You can directly plumb rainwater to feed your toilet which will save you, on average, 8 litre per flush.


System benefits

Easy to install

Lowers water bills

Cleaner water without chemicals

Kinder to plants

Softer water

Low maintainance

Next delivery available

Tank Dimensions
Dimensions: 1550mm x Dia:1550mm
Outlet Upto 4"
Weight 72kg
Access 16" Lid
Capacity 1950 litres / 430 gal

This system come with a Stainless Steel Booster Pump. This pump can be upgraded below

Water Pump Specification
• High specification, extremely quiet, stainless steel bodied corrosion and rust proof pump, ideal for boosting or maintaining water pressure.
• Maximum Output 51 L/min
• Maximum head (lift height) 35M
• Longlife double insulated impeller
• 24ltr Stainless Steel tank
• Auto start/stop to ensure continuity of water pressure
• Operating pressure 2-3.5 bar
• 700 Watts, 230v 1ph motor


Putting it all together
• Connect your rainwater downpipe to the Ecosure underground water filter via underground pipework.

• Using the other 4" outlet on the underground water filter, connect this to your Ecosure underground water tank using one of the pre-moulded 4" outlets in the tank (this will need to be drilled out).

• Drill a hole near the top of water tank and feed the rainwater pipe into the tank.

• Connect of the end of the rainwater pipe to water pump which should be installed in a dry places protected from frost.

• From you pump you can now run pipes to where you require water.

Dimensions

Ecosure Super Complete System Rainwater Harvesting Tank Dimensions 1950 Litres

Dimensions	H:1550mm x Dia:1550mm
Outlet	Upto 4"
Weight	72kg
Access	16" Lid
Capacity	1950 litres / 430 gal
